Klein Tools Scout ® Pro 3 Tester with Locator Remote Kit
Part Number: KLN VDV501-852
The Scout® Pro 3 Tester with Locator Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with 18 location mapping remotes (included). Test for Power over Ethernet (PoE) and measure cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

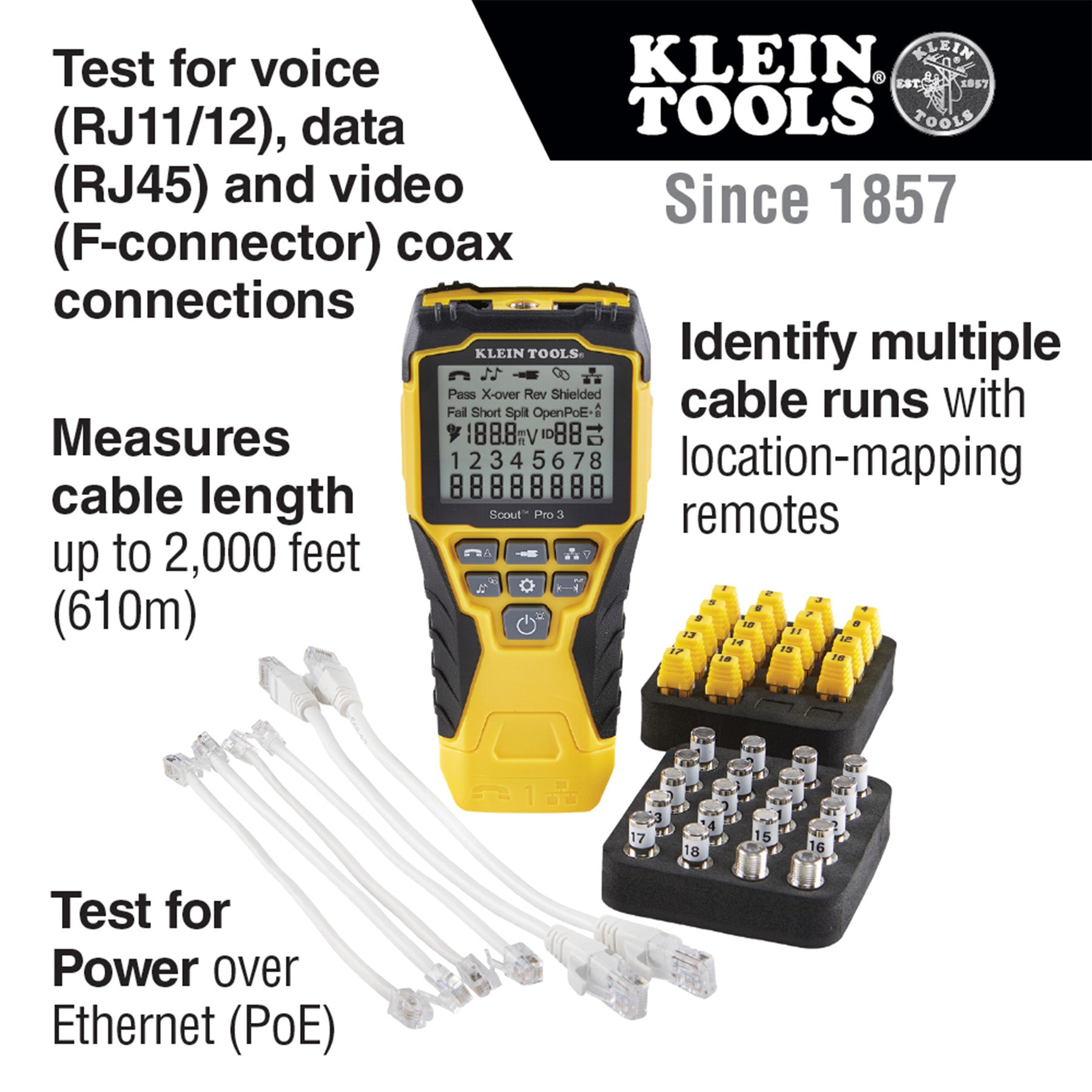

- Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

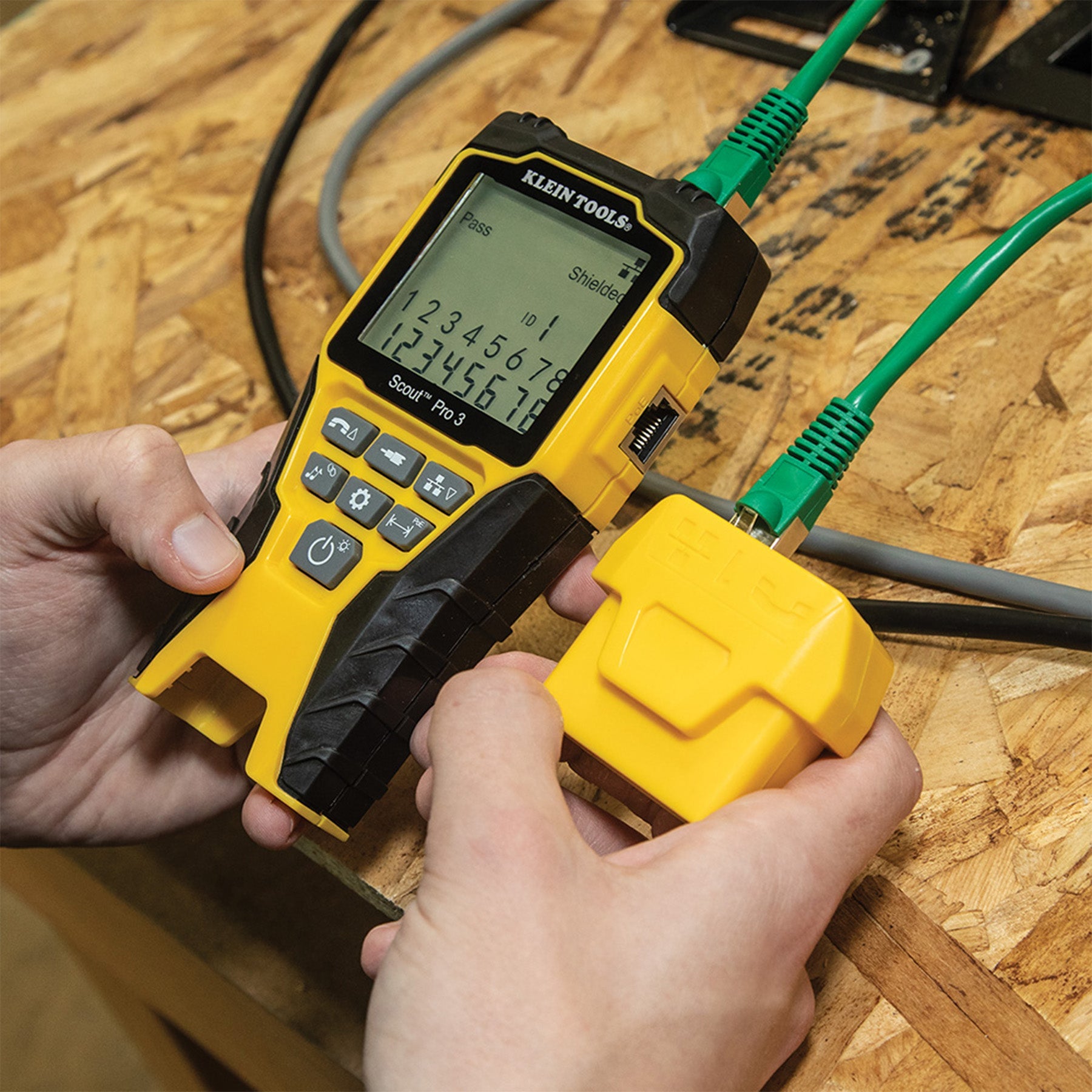

- Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step

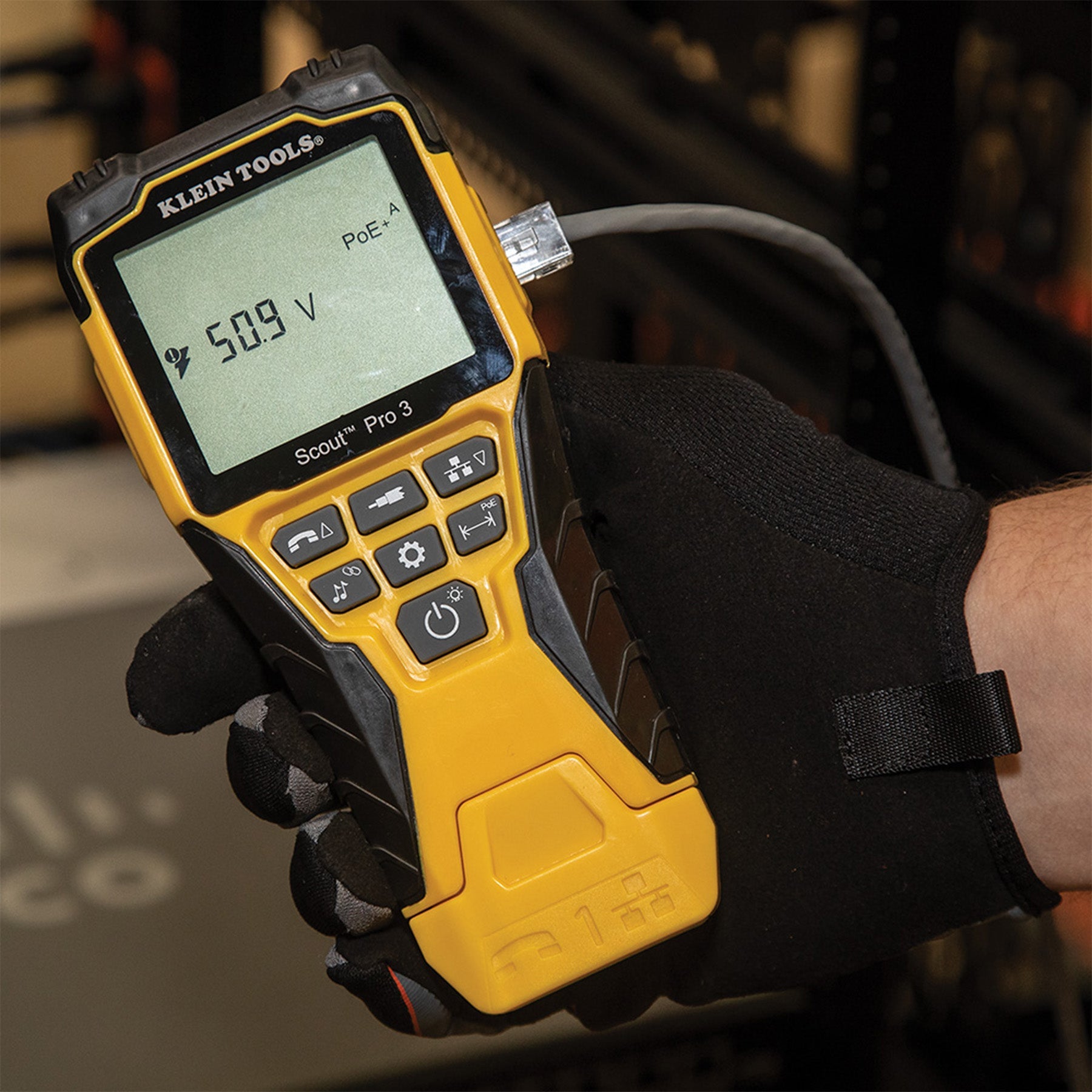

- Power over Ethernet Tester that displays PoE wire and Voltage
- Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

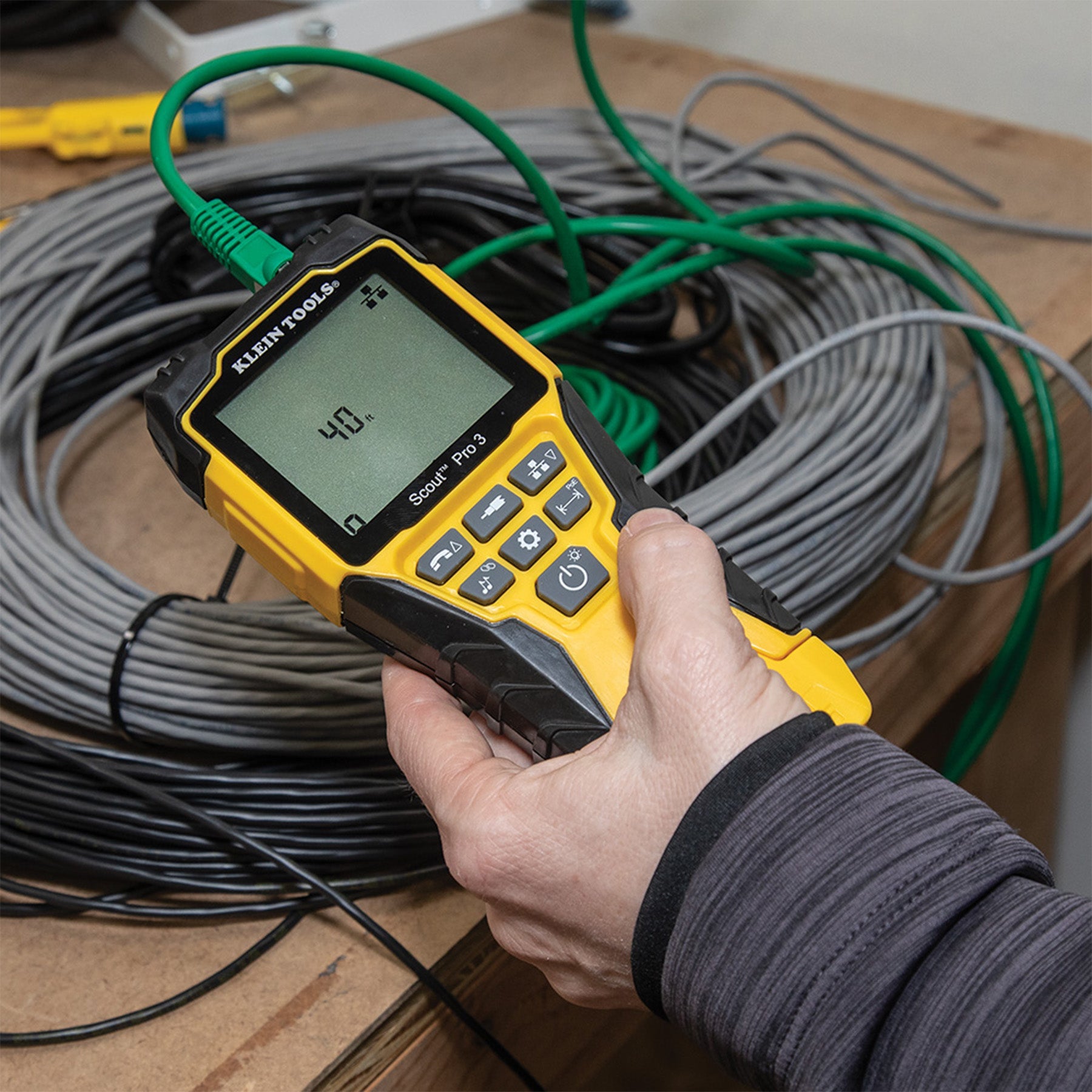

- Measures cable length up to 2,000 feet (610 m)
- Identify multiple cable runs with location-mapping remotes Identify

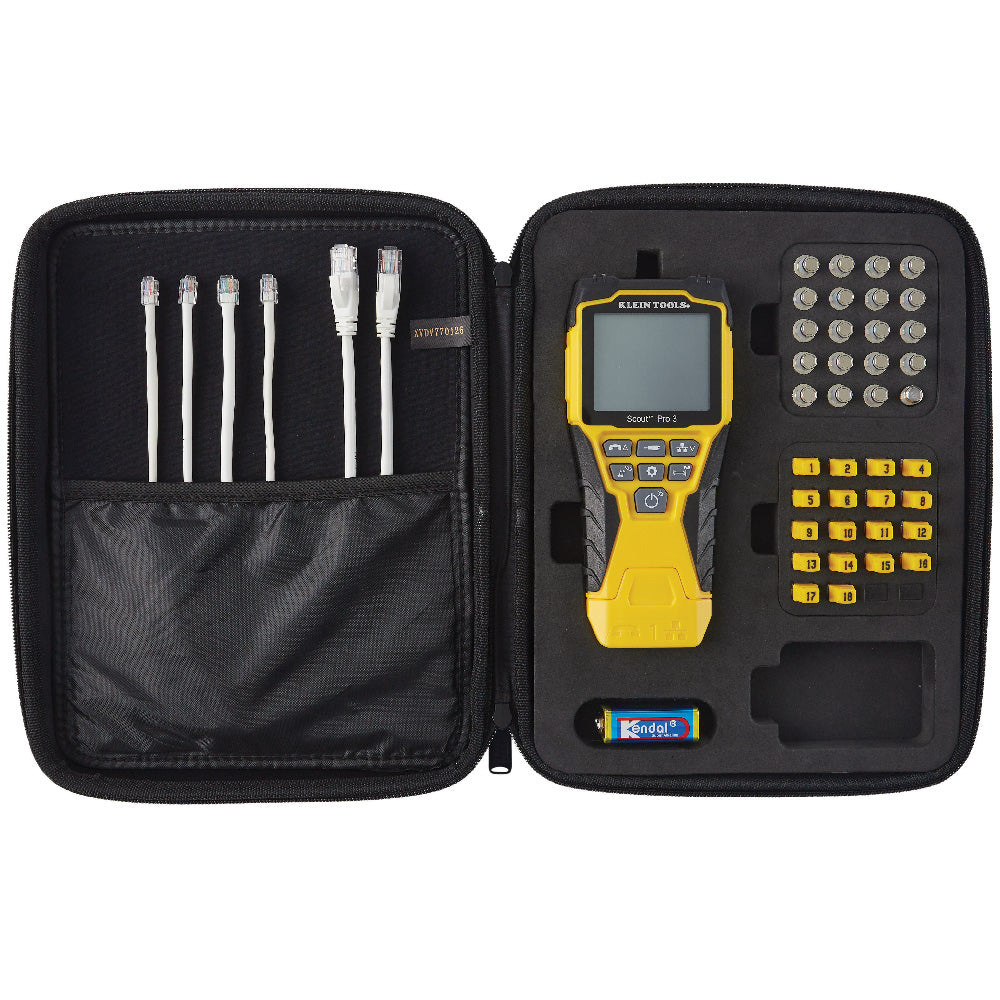

- Kit includes 18 RJ45 LAN locator remotes, 18 F-coax locator remotes, 2 female-to-female coax barrel adaptors, 2 RJ45, RJ11 and RJ12 jumper cables (6-Inch), carrying case and 9V battery
- Detect, identify and test Power over Ethernet (PoE)
- Backlit LCD screen displays cable length, wiremap, cable ID and test results
- Hub blink mode to identify port location on a hub or a switch
- Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers
- Includes a 9V battery and convenient carrying case
Specifications
Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
Application: Cable Testing
Special Features: Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length: 7'' (17.8 cm)
Overall Height: 3.2'' (8 cm)
Overall Width: 1.5'' (3.8 cm)
Material: Plastic and Metal
Test-n-Map ID Remotes: (1) Self-Storing
Location ID: (18) RJ45 Data and (18) F-Coax Locator Remotes
Batteries: 9V Alkaline
Battery Life: Active: 50 hr
Drop Protection: 2 m
Supported Remotes: 18
Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
Display: Backlit LCD
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected: Open, Short, Miswire
Test & Measure Types: Ethernet, Data, Coaxial
Accuracy: Length Measurement: +/- 5% (ft) or 5% m
Included: Tester, Self-storing Test + Map™ Remote (#1), 18 - RJ45 LAN Locator Remotes, 18 - F Coax Locator Remotes, 2 - Coaxial Barrel Adapters (female-to-female), 2 - RJ45 Jumper Cables (6''), 2 - RJ11 Jumper Cables, 2 - RJ12 Jumper Cables, Carrying Case, 1 x 9V Battery
Standard: CE
Weight: 1.2 lb (0.5 kg)
