HD CCTV Video Balun, AHD, HD-TVI, HD-CVI, BNC- 2 Pack

Passive HD Video Balun

Part Number: UTP-SU711

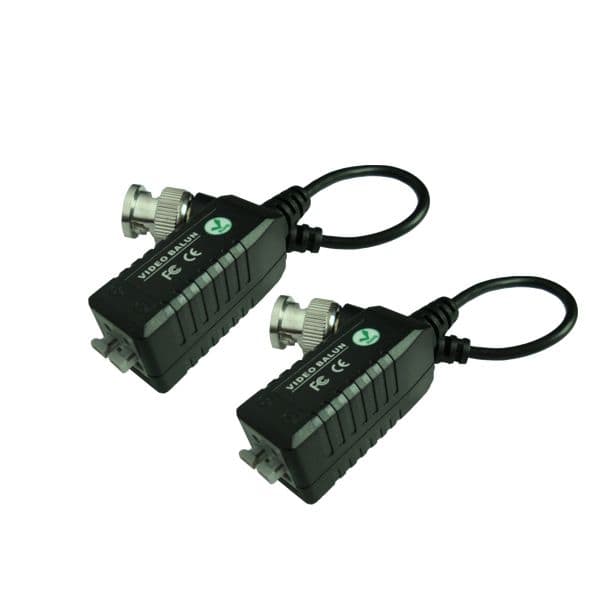

The VB-HD2 is a passive video balun pair that is compatible with AHD, HD-TVI, HD-CVI, and analog CCTV cameras (CVBS). These video baluns let installers use UTP / STP cable (CAT5 for example) for video surveillance applications at distances up to 1300 feet (HD-CVI). The maximum distance that can be achieved varies by the type of HD CCTV camera that your system uses and the resolution that you are transmitting.

Max Cable Distances

• Up to 350 Meters / 1100 Feet for AHD 720P Cameras
• Up to 250 Meters / 820 Feet for AHD / 1080p / 3mp / 4mp / 5mp / 8mp Cameras
• Up to 400 Meters / 1300 Feet for HD-CVI 720P Cameras
• Up to 250 Meters / 820 Feet for HD-CVI 1080p / 3mp / 4mp / 5mp / 8mp Cameras
• Up to 200 Meters / 650 Feet for HD-TVI 720p / 1080p / 3mp / 4mp / 5mp / 8mp Cameras
• Up to 350 Meters / 1100 Feet for Analog CCTV Cameras (CVBS NTSC and PAL)

Balun Features

• 2 Balun Pair
• Compatible with HD BNC Camera Formats - HD-AHD, HD-TVI and HD-CVI
• Compatible with Analog CCTV Camera Format - CVBS NTSC and PAL
• NTSC / PAL Video Format Support
• Passive / No Power Required
• Transient Suppression Protection
• Male BNC Connectors
• 14°F to 158°F Operating Temperature
